FOR THOSE WHO DEMAND LEGENDARY OFFSHORE PERFORMANCE.
Yamaha’s legendary V6 3.3L four strokes set the course for today’s offshore power. When they first hit the water, they brought with them several innovations that radically improved low-end and midrange torque, acceleration and top-end speed. This technology was so revolutionary that it garnered not only a BoatingWeek Innovation Award, but also an Editor’s Choice Award from MotorBoating Magazine.

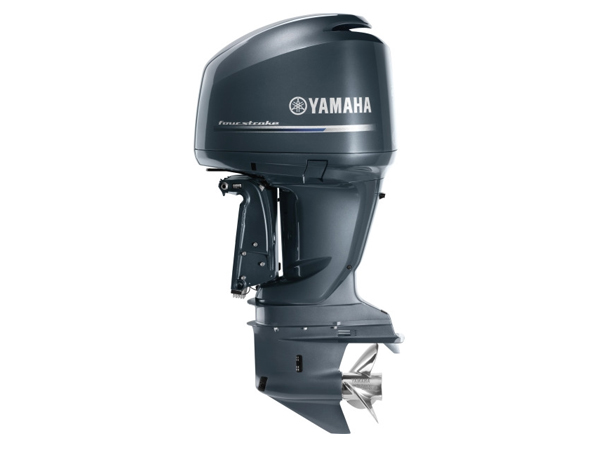

2017 Yamaha F200 3.3L Offshore XCA Outboard Motor
Power/Performance
- Mechanically Remote-Controlled Four Stroke V6 Outboard
- Narrow 60° 3.3L Block Design
- Variable Camshaft Timing
- Long Track Induction System
- Precision Multi-Point Fuel Injection
- 6 Independent Fuel Injectors
- 4 Large Radius Valves Per Cylinder
- High Intake Valve Lift
- Double Overhead Camshafts
- In-Bank™ Exhaust
- Exhaust Pressure Reduction System
Reliability/Durability
- TCI Microcomputer
- Electronic Single Throttle Valve (65mm)
- Direct Drive System
- Sacrificial Anodes
- Forged Pistons
- Water Cooled Rectifier/Regulator
- Water Separator
- Direct Ignition
- YDC-30 Aluminum Alloy
- 5-Step Anti-Corrosion Paint Process
- Top Mounted Electrical
- High Output Alternator
- SST Drive, Prop, Shift Shafts
- SST Steering Tube
Convenience/Control
- Command Link® System
- Power Trim & Tilt
- Freshwater Flush
- Counter Rotation “LF” Model
- Yamaha Diagnostic System
- Multi-Charge Monitoring System
- Single Belt Drive System
2017 Yamaha F200 3.3L Offshore XCA Outboard Motor
Year 2017
Manufacturer Yamaha Marine
Model Name F200 3.3L Offshore
Trim Name XCA
Generic Type (Primary) Four Stroke
Engine
Engine Type 60° V6 DOHC 24-Valve
Engine Power 200hp at 5500 rpm (VF200LA)
Alternator (Output): 44 Amp (Battery charge: 27 Amp)
Gear Ratio (Primary) (30:15) 2.00:1
Displacement 204.6 ci (3352 cc)
Lubrication Wet sump
Ignition System: TCI Micro Computer
Fuel System (Induction): EFI/VCT/DOHC
Oil Type (Recommended): Yamalube® 4M (See owner’s manual)
Fuel Type (Recommended): Regular Unleaded (Minimum Pump Octane 89)
Fuel Type (Recommended Filtration): Yamaha 10-Micron Fuel/Water Separating Filter (external)
Capacities
Oil capacity 4.7L/4.5L w/without filter
Spark Plug
Spark Plug LFR6A-11-00-000
Range
Note Full Throttle RPM Range: 5000 – 6000
Dimensions
Length Shaft: X = 25″
Bore 3.70 in. (94 mm)
Stroke 3.17 in. (80 mm)
Weights
Dry Weight 276 kg (608 lb)
Features
Features C.A.R.B. Rating: 3 Star
Note Mounting Centers: 28.6″
Features Degree of Tilt: TBD | Degree of Trim: -3° through +16°
Compression Ratio 9.9:1
Exhaust Through Propeller
Cooling Water/Thermostatic Control
Note Gear Shift: Forward, Neutral, Reverse
Steering Angle Maximun: 32° from center, either direction
Note Ethanol Blend Limit: 10% Maximum
Intake Design Single Throttle Valve
Starter T = Electric w/ PTT
Warranty
Warranty 3-Year Pleasure, 3-Year Government, 1-Year Commercial
