Meet the next-gen ln-Line Four V MAX SHOs. Their advanced technology achieves the unthinkable-packing the signature VMAX SHO hole shot, midrange acceleration and super-high-output performance into ingeniously streamlined designs. With 16-valves. double overhead cams and electronic fuel injection, their next-gen tech packages are designed for maximum performance and efficient operation, and their DNA, undeniably V MAX SHO. On a bass or flats boat, or other performance hull, the four-stroke I·4 V MAX SHOs will deliver the exhilarating performance that anglers crave and the competition admires.

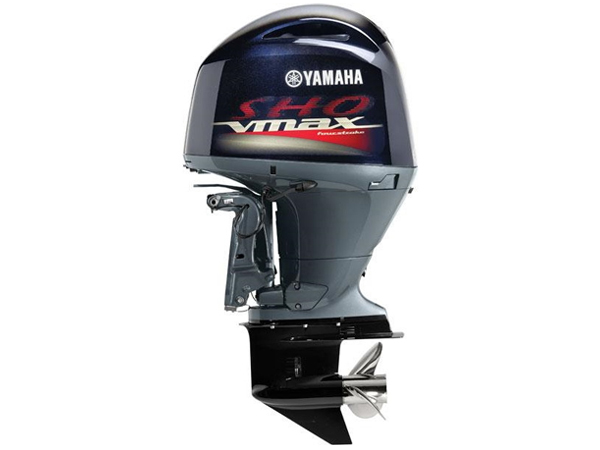

2017 Yamaha VF150 XA VMAX SHO Outboard Motor
- 2.8L High Output Four Cylinder
- Double Overhead Camshafts
- 4 Large Radius Valves Per Cylinder
- Variable Camshaft Timing
- 4 Independent Fuel Injectors
- Tuned Long Track Induction System
- Electronic Multi-Point Precision Fuel Injection
- Four-Into-One Exhaust
- Blow-By Gas Reburning System
- Offset Crankshaft
- Counterbalancing technology
- Compact, Lightweight Design
2017 Yamaha VF150 XA VMAX SHO Outboard Motor
Year 2017
Manufacturer Yamaha Marine
Model Name VF150
Trim Name XA
Generic Type (Primary) Four Stroke
Engine
Engine Type In-Line Four-Cylinder
Engine Power 150 HP @ 5500 RPM
Alternator (Output): 50 Amp
Displacement 2785cc (170.0 ci)
Gear Ratio (Primary) (28:14) 2.0:1
Lubrication Wet sump
Fuel Type Induction: EFI (DOHC) VCT
Oil Type (Recommended): Yamalube® 4-M (See Owner’s Manual)
Fuel Type (Recommended): Regular Unleaded (Minimum Pump Octane 89)
Capacities
Oil capacity 4.5L/4.3L w/without filter
Range
Note Full Throttle RPM Range: 5000-6000 rpm
Dimensions
Length Shaft: 20″
Bore 3.78 in. (96 mm)
Stroke 3.79 in. (96.2 mm)
Weights
Dry Weight 489 lb (222 kg) VF50XA
Features
Exhaust Through Propeller
Intake Design Single Electronically Controlled Throttle Valve
Features C.A.R.B. Rating: 3 Star
Note Gear Shift: Forward, Neutral, Reverse
Note Ethanol Blend Limit: 10% Maximum
Compression Ratio 10.3:1
Cooling Thermostatic Control
Ignition System: TCI Micro Computer
Features Degree of Tilt: 70° | Degree of Trim: -4° through +16°
Starter Electric w/PTT
Warranty
Warranty 3-year Pleasure, 3-year Government, 1-Year Commercial
