We took the popular F9.9 and completely redesigned it to offer even greater efficiency, and enhanced features all built into a smaller and lighter unit. In fact the F9.9 is nearly identical to our 9.9 two-stroke in size. This helps makes it the ideal lightweight outbaord companion promising the legendary Yamaha reliability over a million boaters have come to depend upon.
Better Starting: Manual-start models feature an easy grip starter knob with a built-in decompression device.
The Perfect Combination: Lightweight, compact and fuel efficient.

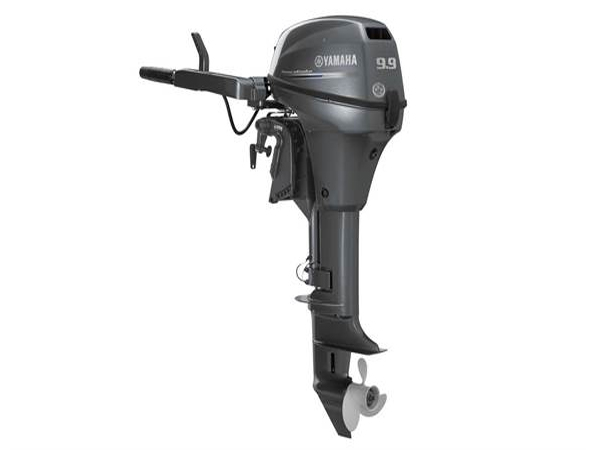

2018 Yamaha F9.9 Portable Mechanical F9.9LEB Outboard Motor
- Pad & Fold: An added resting pad means more storage options and improved storage stability, while the redesigned tiller handle allows the stored motor to take up less space.
- With a Twist: The driveshaft on the new F9.9F and T9.9G has a special centre section that is narrower than the ends. It is designed to temporarily “twist” should the prop coming into hard contact with an underwater object, protecting the powerhead, propshaft and other vital engine components.
- Control: The shortened tiller handle is now easier to use than ever before. Its new shift level shape provides better grip for precise shifting.
- Fuel Sipper: Thanks to advanced Yamaha four-stroke engine technology the F9.9 boasts outstanding fuel economy – substantially better than 2-stroke 9.9-hp models.
- Front & Centre: Convenient front-mounted controls facilitate smooth shifting, easy, shallow water drive and single action steering friction adjustment.
- Anti-corrosion Protection: Yamaha’s unique YDC-30 aluminium alloy protects the engine’s exterior parts, while a zinc coating, high-quality stainless steel and 5-stage exterior coating offers long-lasting protection inside and out.
- Engine Type: 2-cylinder
- Displacement: 212 cc (12.9 ci)
- Bore & Stroke: 56 x 43 mm (2.2 x 1.69 in.)
- RPM Range: 5000-6000
- Compression Ratio: 9.46:1
- Induction System: SOHC
- Alternator Output: 12v / 6 Amps
- Fuel Delivery: Carburetor (1)
- Starting: Manual or electric
- Ignition: CDI Micro-Computer
- Lubrication: Wet sump
- Degree of Trim/Tilt: 4 positions/70 deg.
- Exhaust: Through Prop / Water Cooled Lab
- Cooling: Water/Thermostatic Control
- Gear Shift: Tiller Mount F/N/R
- Gear Ratio: 13/27 (2.08)
- Recommended Fuel: Regular Unleaded (Minimum Pump Octane 87)
- Recommended Oil: Yamalube 4-M FC-W 10W-30 or 20W-40
- Oil Capacity: 0.8L (.85 qt.)
- Shaft Length: 20 in.
- Dry Weight: 39 kg / 87 lb.
2018 Yamaha F9.9 Portable Mechanical F9.9LEB Outboard Motor
| Engine | |
| Engine Type | 2-cylinder |
| Bore x Stroke | 56 x 43 mm (2.2 x 1.69 in.) |
| Displacement | 212 cc (12.9 ci) |
| Starting | Manual or electric |
| Dimensions | |
| Shaft Length | 20 in. |
| Weight | 39 kg (87 lb.) |
| General | |
| Full Throttle Operating Range | 5000-6000 rpm |
| Gear Ratio / Shift | 13/27 (2.08) / Tiller Mount F/N/R |
| Fuel Induction | SOHC |
| Alternator | 12V / 6 Amps |
| Cooling | Water/Thermostatic Control |
2018 Yamaha F9.9 Portable Mechanical F9.9LEB Outboard Motor
WHAT’S IN THE BOX ?
1 X Outboard Motor
1 X Outboard Tiller Handle
1 X Fuel Tank
1 X Quick Connect Fuel Line tilt switch
1 x Teleflex SL3 Throttle control Top or side Mount + Free Installation Universal Cables
1 X Outboard Warranty Card from manufacturer Valid 5 Years Depending on outboard type
1 X Standart Aluminum Propeller Depending on outboard Brands , type & Horse power.
1 X Trim limiter
3 X Gall Free Oil Depending on outboard Brands Yamalube, Honda Marine Oil, Mercury Premium Oil
1 X Stainless Outboard Anti-Theft
1 X Book Owner’s Manual Guide from manufacturer
1 X Ebook Installation Guide & And how to take care of the engine properly.
3 X Cable Protection System Length 800mm
